- New Design of Sliding Grab Rail.
- Undersling + Concealed Fix.
- Brushed Stainless Steel Finish.
Made to industry standards and of 304 grade stainless steel. Rail diameter size of 32mm in Brushed Stainless Steel finish.
The sliding bracket is bevelled on either side, allowing a smooth hand travel along the rail.
Available in concealed fixing with screws and wall plugs provided. Additional brackets can be purchased separately, use 3532-1.

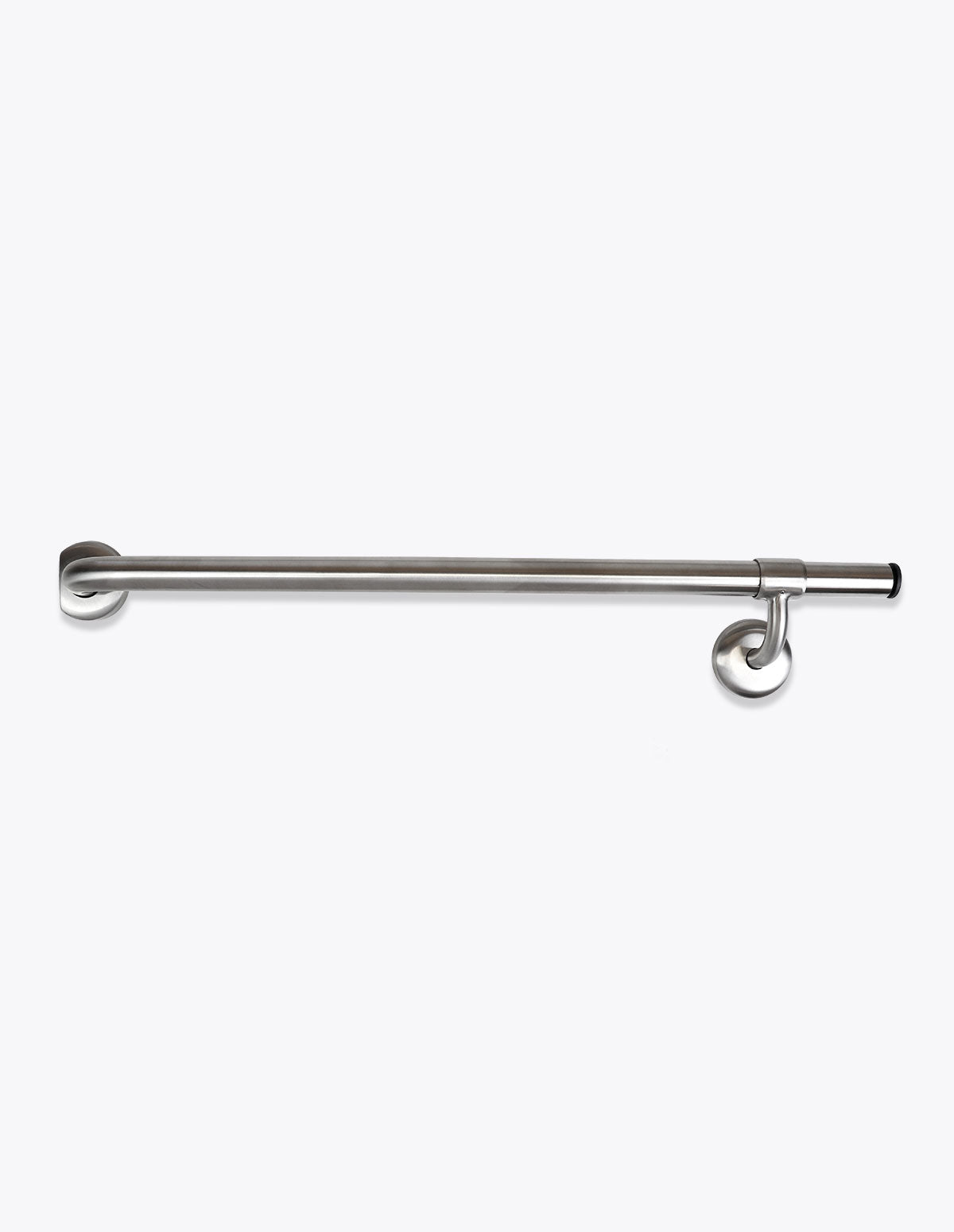

Operates with one fixed end and the other end will slide along the length of the rail until the desired fixing point has been located. Once the fixing point has been found, cut the rail to suit and secure the sliding undersling bracket.

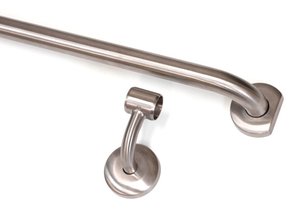

The sliding rail bracket has an undersling that allows a full 270 degree hand movement over the rail. The bracket also has a threaded grub screw locating fixing. An allen key is supplied with the unit.
The squared off end will fit hard into a corner if needed. Alternatively, if the rail is not required to fit into a corner & a round flange is preferred, you can purchase a round flange separately (N3-FC-RND). Simply remove the squared flange and replace with the other. This can then offer a uniformed round flange look on both ends.
