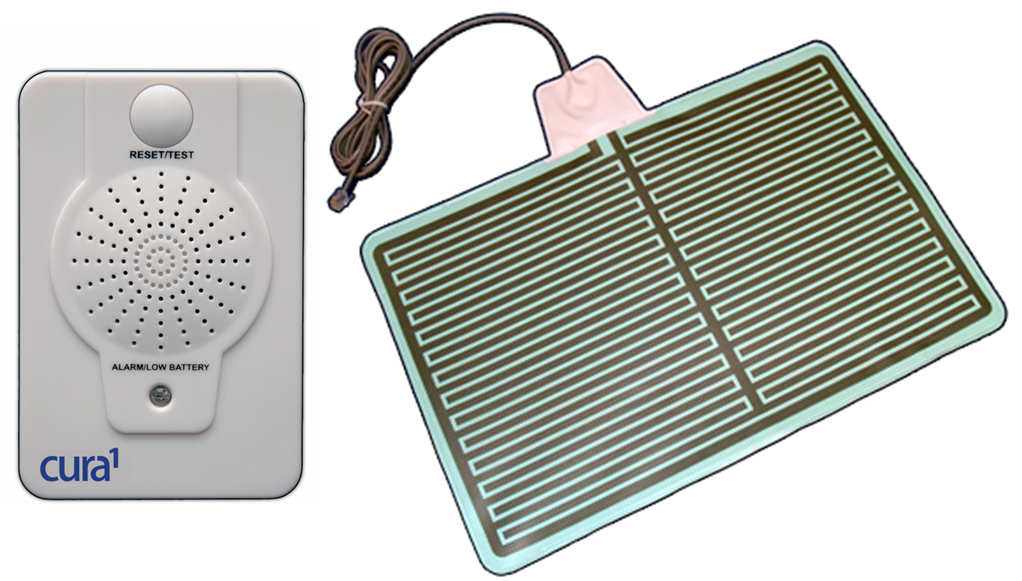

Cura 1 Incontinence Detection Chair Sensor Kit

Used to detect and alert the carer when a loved one or a resident has been incontinent whilst seated.

Kit Contains:

• 1 x incontinence Chair pad – 30 day use (including connecting cord).
• 1 x incontinence monitor.

Incontinence Monitor Technical Specifications:

• DC operation using either a 3 x AAA batteries or 6V plug pack.
• Dimensions 70 x 105 x 40mm durable ABS plastic enclosure.
• Weight 115g without batteries.
• 3 selectable alarm tones.
• Alarm mute switch.
• 3 delay options 0 sec / 1 sec / 2 sec.
• Volt free normally open relay contact alarm output.
• RJ10 type socket for wired incontinence connection.
• Low battery detection and indication 3.3Vdc trigger point.

Features:

• Simple operation and maintenance.
• Works with all Economy Incontinence Pads.
• Red LED visual alarm indicator.
• 3 x AAA battery operated or optional 6V external plug pack.
• 3 selectable alarm tones.
• Can be connected to a nurse call system.
• Adjustable alarm volume.
• Front panel reset / self test button.
• “Low Battery” audible alarm & red LED visual warning.
• Selectable delay options 0 sec / 1 sec / 2 sec.
• Comes complete with mounting strap.

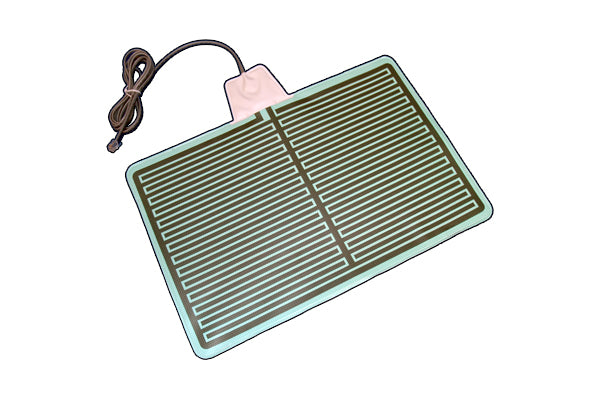

Incontinence Chair Pad Technical Specifications:

• Dimensions 380 x 250mm.
• 30 days life expectancy.
• 2m cable.
• RJ10 connector.

Features:

• Made from soft non-allergenic PVC.
• Reusable & easy to clean.
• For use with Economy Incontinence Monitor.
• Vent holes in the neck reduce risk of moisture ingress.
• Instructions for hygiene & use printed on pad.
• Single patient use is recommended.
